Few materials are as exceptional as boron carbide (B4C).
Harder than silicon carbide, lighter than aluminum, and capable of absorbing neutrons, it offers a rare combination of strength, hardness, and performance under extreme conditions.
It’s those qualities that make boron carbide ideal for the most demanding applications such as ballistic armor and nuclear shielding, where reliability is critical and failure is not an option.
Producing such an advanced ceramic material requires precision and depends on using high-quality inputs such as refined borates from U.S. Borax.
What gives boron carbide its unique properties?
Boron carbide’s unique properties stem from its highly unusual atomic structure. It’s arranged in an icosahedral structure, made of tightly bonded boron atoms, which is responsible for its signature properties:
- Extreme hardness: Ranks 9.3-9.5 on the Mohs scale, surpassed only by diamond and cubic boron nitride
- Low density: At 2.52g/cm3, it’s significantly lighter than most ceramics and metals
- High neutron absorption capability
- High melting temperature
- High thermal stability
Where is boron carbide used?
Refractories
Boron carbide (B4C) is widely recognized as a high-performance material in the field of refractories, favored for its ability to withstand extreme high-temperature environments.
- High-temperature industry furnace linings: Resists high-temperature erosion in industries such as smelting, ceramic sintering, and glass manufacturing—especially in areas in contact with molten metals or high-temperature slags, such as the linings of steelmaking converters and induction furnaces
- Refractory coatings and composite materials: Enhances the metal or ceramic substrates’ resistance to high temperature corrosion by mixing with binders. Likewise, it’s used in the manufacturing of high-temperature molds by incorporating boron carbide into other refractory materials, eg alumina, silicon carbide.

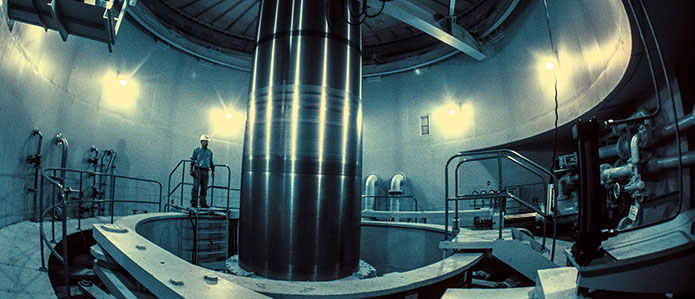

Nuclear energy
Nuclear reactors and storage systems rely on boron carbide for its neutron-absorbing ability and stability under long-term radiation exposure. It’s commonly found in:
- Nuclear reactor control rods: Captures excess neutrons to help control the reaction and maintain a safe, steady power output
- Radiation shielding for spent fuel storage: Incorporated into casks and barriers to reduce radiation exposure during transport and long-term storage of nuclear material
- Neutron detectors: Enables accurate neutron monitoring in power plants
Learn more about boron in nuclear applications
Abrasives and wear parts
As a typical hard material, Boron carbide is widely used to polish the Al2O3 substrate in LED industry. It resists degradation from wear, erosion, and chemicals far better than most materials. Even in high-friction or corrosive environments, it extends the service life of components such as:
- Sandblasting nozzles
- Wire saws
- Valve seats
- Pump seals
Improving the durability of this equipment reduces maintenance costs and downtime for industrial manufacturers.
Defense applications
Since the 1960s, boron carbide has been used in armor systems. It’s pressed into hard ceramic strike plates designed to fracture and disperse the energy of incoming projectiles, thus keeping people safe. Its light weight and extreme hardness allow for ballistic protection in both personal and vehicle armor.
How is boron carbide made?
Typically available in powder form, boron carbide is the result of a high-temperature chemical reaction between boric oxide or boric acid and a carbon source (graphite or petroleum coke).
Electric arc, plasma, or high-temperature resistance furnaces heat the raw materials to 1,800-2,000 °C, driving the carbothermal reduction that forms B4C.
The process requires tight control over variables such as:
- Moisture
- Temperature
- Particle size
- Current
- Stoichiometry (precise ratio of boron to carbon)
Maintaining proper stoichiometry is critical. Too much carbon leaves excess graphite in the product, while too little can result in unreacted boron oxide. Both reduce yield and compromise material performance.
Likewise, impurities such as iron, calcium, magnesium, or silica can disrupt crystal growth, lower hardness, and impair sintering behavior.
That’s why many manufacturers rely on refined borate products such as boric oxide or boric acid. Our boric acid Optibor® and boric oxide are produced with high grade ores of tincal (Na2B4O7•10H2O) and kernite (Na2B4O7•4H2O) that have low levels of the impurities. This can help promote a uniform grain structure, high mechanical strength, and reliable performance—qualities that are especially critical in high-risk applications.
Purity in action: Boron carbide for nuclear applications
In nuclear reactors, even trace impurities in boron carbide can have serious consequences. Unrefined borates may introduce contaminants that disrupt the sintering process, causing:
- Lower neutron absorption capacity
- Microstructural defects
- Poor sintering and densification, resulting in weak or porous components
Using refined borates ensures the right consistency and purity to meet the exacting standards of nuclear environments, where reliability and safety are non-negotiable.
Technical expertise for highly technical projects
For a century and a half, we’ve mined our products in the U.S., adhering to strict quality and purity standards.
Our technical experts, backed by decades of research and development, work closely with you to support even the most demanding applications.
We can assist with:
- Selecting the right borate product for your process
- Ensuring consistent boron-to-carbon loading ratios
- Developing effective formulations
If you have any questions or need tailored support, please contact our technical team
